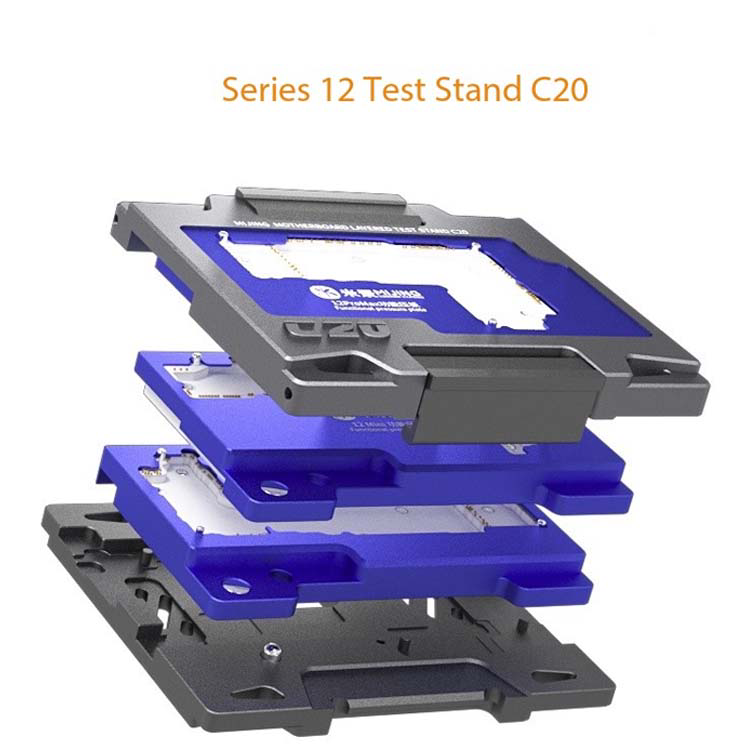

MIJING C20 Testing Tools Middleboard for iPhone 12 Series
>
Rs. 20000
Descriptions
The MIJING C20 fixture addresses a critical challenge in modern iPhone repairs: the complexity of layered motherboard architecture. In the iPhone 12 series, the logic board is split into two interconnected layers, which must be carefully separated during advanced repairs such as chip replacement, short-circuit diagnostics, or board-level troubleshooting. The C20 fixture allows technicians to simulate the full board connection while the layers are still separated, enabling real-time testing of power, display, touch, and other essential functions.
This pre-soldering diagnostic capability is a game-changer. It helps identify faults early, reducing the risk of thermal damage, soldering errors, or unnecessary rework. By confirming that both layers are functioning correctly before final bonding, technicians can proceed with confidence, saving time and preserving the integrity of the device.

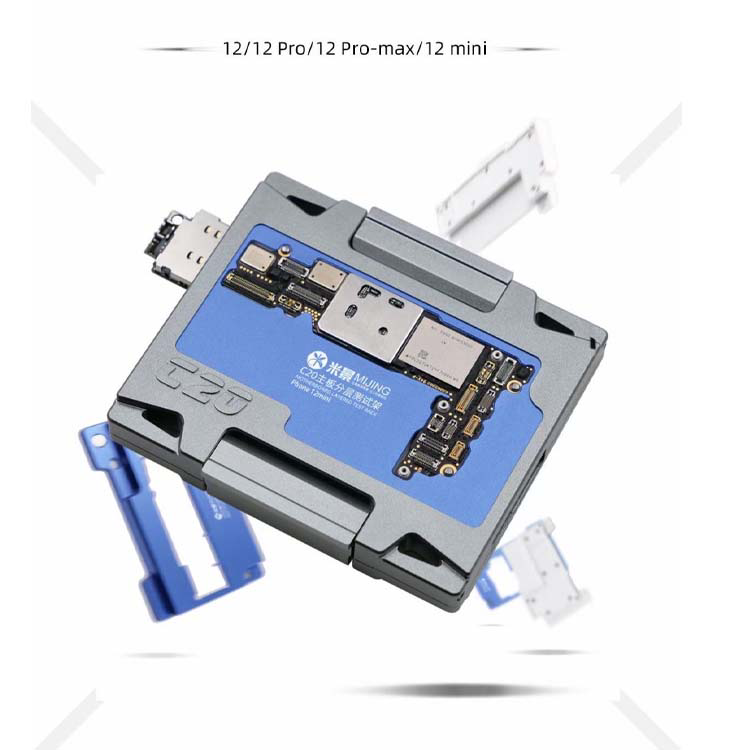

The fixture features dedicated slots for each iPhone 12 model, ensuring a secure and accurate fit. Its compact and portable design makes it ideal for use in repair shops, field service environments, or training labs. The C20 also includes essential accessories such as power cables, LCD test cables, and on/off control lines, streamlining the setup process and ensuring compatibility with standard repair tools.
